Threaded vs Grooved vs Flanged Pipe Fittings: Which Connection Type Suits Your Project?
Selecting the right pipe connection method is essential for ensuring the safety, durability, and efficiency of any piping system. In industrial, commercial, and infrastructure applications, pipe fittings must not only withstand pressure and temperature requirements but also provide reliable installation and maintenance performance.
Among the most commonly used connection methods are threaded, grooved, and flanged pipe fittings. Each type offers unique advantages and limitations depending on the project environment, fluid type, installation complexity, and long-term maintenance needs.
As a professional Pipe Fittings Manufacturer China, HuLu supplies a wide range of threaded, grooved, and flanged pipe fittings designed for global industrial and commercial piping systems.
Why Connection Type Matters in Pipe Systems
Pipe connection methods directly affect:
Installation speed
Leak prevention
Pressure resistance
Maintenance efficiency
System flexibility
Overall project cost
Choosing the wrong connection type may result in:
Leakage problems
High maintenance expenses
Difficult repairs
Reduced system reliability
Longer installation time
Understanding the differences between threaded, grooved, and flanged fittings helps engineers and buyers select the best solution for their specific applications.
What Are Threaded Pipe Fittings?
Threaded pipe fittings use screw threads to connect pipes and fittings together. The threads are cut into the pipe ends and fitting interiors, allowing components to be tightened mechanically.
Common Applications of Threaded Fittings
Threaded fittings are widely used in:
Plumbing systems
Gas pipelines
Low-pressure water systems
Fire sprinkler systems
Residential and commercial piping
A trusted Pipe Fittings Manufacturer China supplier like HuLu often provides threaded fittings for projects requiring convenient installation and moderate operating conditions.
Advantages of Threaded Pipe Fittings
Easy Installation
Threaded fittings are simple to install without welding.
This reduces:
Installation labor
Equipment requirements
Construction complexity
Convenient Maintenance
Threaded connections can usually be disassembled easily for repair or replacement.
Cost-Effective for Small Systems
For smaller pipe diameters and lower-pressure systems, threaded fittings provide an economical solution.
Limitations of Threaded Pipe Fittings
Pressure and Temperature Restrictions
Threaded fittings are generally less suitable for:
Very high-pressure systems
Extreme temperature environments
Large-diameter pipelines
Leakage Risk
Improper thread sealing may lead to leakage over time, especially under vibration or thermal cycling conditions.
Corrosion Around Threads
Threaded areas may become more vulnerable to corrosion because the threading process can expose fresh metal surfaces.

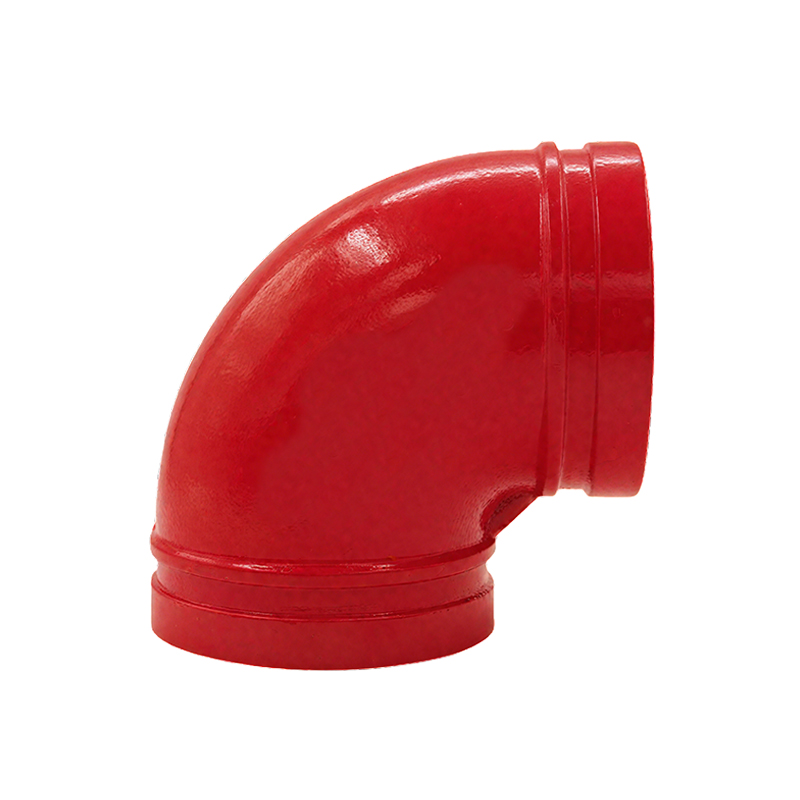

What Are Grooved Pipe Fittings?
Grooved pipe fittings use a mechanical coupling system. A groove is cut or rolled near the pipe end, and a coupling with a gasket connects the components together.
Common Applications of Grooved Systems
Grooved fittings are commonly used in:
HVAC systems
Fire protection systems
Commercial buildings
Industrial piping
Water distribution networks
Many global projects source grooved systems from experienced Pipe Fittings Manufacturer China suppliers due to their installation efficiency.
Advantages of Grooved Pipe Fittings
Fast Installation Speed
Grooved systems can be installed much faster than welded or flanged systems.
This helps reduce:
Labor costs
Downtime
Project schedules
Flexible Connection Design
Grooved couplings allow slight movement and vibration absorption, which is useful in dynamic piping systems.
Simplified Maintenance
Components can be removed or replaced quickly without cutting or welding.
This makes grooved systems highly suitable for maintenance-intensive applications.
Limitations of Grooved Pipe Fittings
Limited Extreme Pressure Capability
Although modern grooved systems support many industrial applications, some ultra-high-pressure environments may still require flanged or welded systems.
Dependence on Gasket Quality
The sealing performance depends heavily on gasket quality and proper installation.
What Are Flanged Pipe Fittings?
Flanged fittings use bolted flange connections with gaskets placed between mating surfaces to create a secure seal.
Common Applications of Flanged Systems
Flanged fittings are widely used in:
Oil and gas facilities
Petrochemical plants
Power generation systems
Chemical processing
Large industrial pipelines
HuLu, as a reliable Pipe Fittings Manufacturer China, provides flanged fittings designed for demanding industrial operating conditions.
Advantages of Flanged Pipe Fittings
Excellent High-Pressure Performance
Flanged systems are highly suitable for:
High-pressure pipelines
High-temperature systems
Large-diameter piping networks
Strong Mechanical Stability
Bolted flange connections provide strong structural support and sealing capability.
Easy Equipment Integration
Flanged connections simplify the installation of:
Valves
Pumps
Heat exchangers
Industrial equipment
Limitations of Flanged Pipe Fittings
Higher Installation Cost
Flanged systems often require:
More materials
Additional bolts and gaskets
Larger installation space
Higher labor costs
Heavier System Weight
Flanged connections are generally heavier than threaded or grooved alternatives.
Comparing Threaded, Grooved, and Flanged Pipe Fittings
Installation Speed Comparison
Grooved systems are typically the fastest to install
Threaded systems are simple for small pipelines
Flanged systems require more assembly time
Pressure Capability Comparison
Flanged systems offer the highest pressure resistance
Grooved systems support medium- to high-pressure applications
Threaded systems are better for low- to medium-pressure use
Maintenance Convenience Comparison
Grooved systems provide excellent maintenance flexibility
Threaded systems are relatively easy to disassemble
Flanged systems allow equipment access but require more labor
Cost Comparison
Threaded fittings are often the most economical for smaller systems
Grooved systems reduce labor costs significantly
Flanged systems may involve higher total installation costs
How to Choose the Right Connection Type
The best connection method depends on project requirements.
Choose Threaded Fittings When:
Pipe sizes are smaller
Installation simplicity is important
Pressure requirements are moderate
Budget-sensitive projects are involved
Choose Grooved Fittings When:
Fast installation is required
Maintenance flexibility is important
HVAC or fire protection systems are involved
Vibration absorption is beneficial
Choose Flanged Fittings When:
High pressure or temperature exists
Industrial processing systems are used
Large-diameter pipelines are required
Heavy equipment integration is necessary
Why Work With a Professional Pipe Fittings Manufacturer China Supplier?
An experienced Pipe Fittings Manufacturer China supplier provides:
International standard compliance
Stable product quality
Technical application support
Custom manufacturing capability
Reliable global supply solutions
HuLu focuses on supplying high-performance pipe fittings for industrial, commercial, and infrastructure projects worldwide.
Conclusion
Threaded, grooved, and flanged pipe fittings each offer distinct advantages depending on system requirements, operating conditions, and installation priorities. Threaded fittings provide economical solutions for smaller systems, grooved fittings improve installation speed and maintenance flexibility, while flanged fittings deliver superior strength for demanding industrial environments.
By understanding the differences between these connection types, engineers and buyers can select the most suitable solution for improving piping system efficiency, safety, and long-term reliability. As a trusted Pipe Fittings Manufacturer China, HuLu continues to provide reliable fitting solutions for diverse global applications.
