Structural Strength and Impact Resistance Differences Between Malleable and Ductile Iron Fittings

 When selecting pipe fittings for industrial, commercial, or municipal piping systems, understanding the mechanical properties of different materials is essential. Among the most widely used options are malleable iron and ductile iron fittings. Although both are iron-based products, they differ significantly in strength, ductility, impact resistance, and ideal applications.

As a trusted malleable iron pipe fittings manufacturer, HuLu provides high-quality fittings engineered to meet international standards and perform reliably in demanding environments. This guide explains the structural strength and impact resistance differences between malleable and ductile iron fittings to help engineers, contractors, and distributors make informed purchasing decisions.

Understanding Malleable Iron Pipe Fittings

Malleable iron is produced by heat treating white cast iron through an annealing process. This treatment transforms brittle carbides into rounded graphite particles, creating a material with improved ductility and toughness.

Key Characteristics of Malleable Iron

Malleable iron offers several advantages:

· Excellent machinability

· Good tensile strength

· Reliable shock resistance

· Easy threading

· High dimensional accuracy

· Cost-effective production

These qualities make malleable iron fittings popular for:

· Water supply systems

· Gas distribution

· Fire protection pipelines

· HVAC installations

· Compressed air systems

A professional malleable iron pipe fittings manufacturer like HuLu ensures every fitting undergoes strict quality inspections for consistent performance.

What Are Ductile Iron Fittings?

Ductile iron, also called nodular cast iron or spheroidal graphite iron, is manufactured by adding magnesium during casting. This process changes graphite into spherical nodules, dramatically improving mechanical properties.

Main Features of Ductile Iron

Ductile iron is known for:

· Very high tensile strength

· Superior yield strength

· Outstanding elongation

· Excellent fatigue resistance

· High pressure capability

· Exceptional impact toughness

These characteristics make ductile iron suitable for heavy-duty infrastructure projects, including:

· Municipal water pipelines

· Wastewater systems

· Industrial plants

· Oil and gas pipelines

· High-pressure transmission networks

Structural Strength Comparison

Structural strength is one of the biggest differences between these two materials.

Tensile Strength

Ductile iron generally possesses much higher tensile strength than malleable iron.

Typical values include:

Malleable Iron

· Tensile strength: 350–450 MPa

Ductile Iron

· Tensile strength: 420–700 MPa

The increased tensile strength enables ductile iron fittings to withstand greater internal pressure and external loading.

Yield Strength

Yield strength determines how much stress a material can tolerate before permanent deformation occurs.

Ductile iron consistently demonstrates higher yield strength, making it more suitable for:

· Underground pipelines

· Heavy traffic areas

· Large-diameter piping

· High-pressure applications

Malleable iron performs exceptionally well in moderate-pressure systems where flexibility and ease of installation are more important than maximum load capacity.

Impact Resistance Comparison

Impact resistance refers to the material's ability to absorb sudden shocks without fracturing.

Malleable Iron Performance

The annealing process significantly improves toughness compared to ordinary cast iron.

Benefits include:

· Good resistance to vibration

· Reliable performance under moderate impact

· Reduced risk of brittle fracture

· Better shock absorption than gray cast iron

This makes malleable iron ideal for indoor piping systems exposed to occasional mechanical stress.

Ductile Iron Performance

Ductile iron offers superior impact resistance due to its spheroidal graphite structure.

Advantages include:

· Higher energy absorption

· Better resistance to accidental impacts

· Excellent performance under dynamic loading

· Greater durability in harsh environments

For outdoor installations where equipment movement, ground settlement, or vibration may occur, ductile iron usually provides a longer service life.

Microstructure Makes the Difference

The mechanical differences originate from the internal graphite structure.

Malleable Iron

Graphite appears as irregular temper carbon clusters.

This structure provides:

· Improved ductility

· Better machinability

· Adequate toughness

· Easier threading

Ductile Iron

Graphite forms spherical nodules.

This minimizes stress concentration inside the metal, leading to:

· Higher strength

· Greater flexibility

· Better crack resistance

· Longer fatigue life

The spherical graphite structure is the primary reason ductile iron outperforms malleable iron in demanding structural applications.

Pressure Resistance

Pressure capability often determines which fitting material should be selected.

Malleable Iron Applications

Malleable fittings are commonly used in:

· Residential plumbing

· Commercial buildings

· Natural gas systems

· Steam lines

· Fire sprinkler systems

These systems typically operate under moderate pressure where malleable iron delivers dependable performance.

Ductile Iron Applications

Ductile iron is preferred for:

· Water transmission mains

· Industrial process piping

· Pump stations

· High-pressure municipal systems

· Large infrastructure projects

Its superior pressure resistance provides greater operational safety.

Installation and Machining Differences

While ductile iron is stronger, malleable iron offers installation advantages.

Malleable Iron Benefits

A quality malleable iron pipe fittings manufacturer produces fittings that are:

· Easier to machine

· Easier to thread

· Simpler to modify onsite

· More convenient for smaller installations

These benefits reduce installation time and labor costs.

Ductile Iron Considerations

Due to its greater hardness and strength, ductile iron may require:

· Heavier machining equipment

· Specialized cutting tools

· Higher installation effort

However, these trade-offs are worthwhile for demanding industrial projects.

Corrosion Performance

Both materials require proper surface protection for long-term durability.

Common protective finishes include:

· Hot-dip galvanizing

· Epoxy coating

· Zinc coating

· Black finish

· Powder coating

As an experienced malleable iron pipe fittings manufacturer, HuLu offers multiple surface treatment options to meet different environmental requirements.

Cost Comparison

Budget considerations also influence material selection.

Malleable Iron

Advantages include:

· Lower manufacturing costs

· Lower installation costs

· Excellent value for standard piping systems

Ductile Iron

Although typically more expensive, ductile iron provides:

· Longer service life

· Higher structural reliability

· Lower maintenance requirements

· Better performance in extreme conditions

The total lifecycle cost may favor ductile iron for critical infrastructure projects.

Which Material Should You Choose?

The ideal choice depends on your application's operating conditions.

Choose malleable iron when you need:

· Threaded fittings

· Medium-pressure systems

· Commercial building installations

· Cost-effective piping solutions

· Easy installation

Choose ductile iron when you require:

· Maximum structural strength

· High-pressure performance

· Excellent impact resistance

· Underground infrastructure

· Heavy industrial applications

Consulting an experienced malleable iron pipe fittings manufacturer can help ensure the most appropriate material selection.

Why Choose HuLu as Your Malleable Iron Pipe Fittings Manufacturer?

HuLu has built a reputation for supplying durable, precision-engineered pipe fittings that comply with international quality standards.

Key advantages include:

Extensive Product Range

HuLu manufactures a comprehensive selection of:

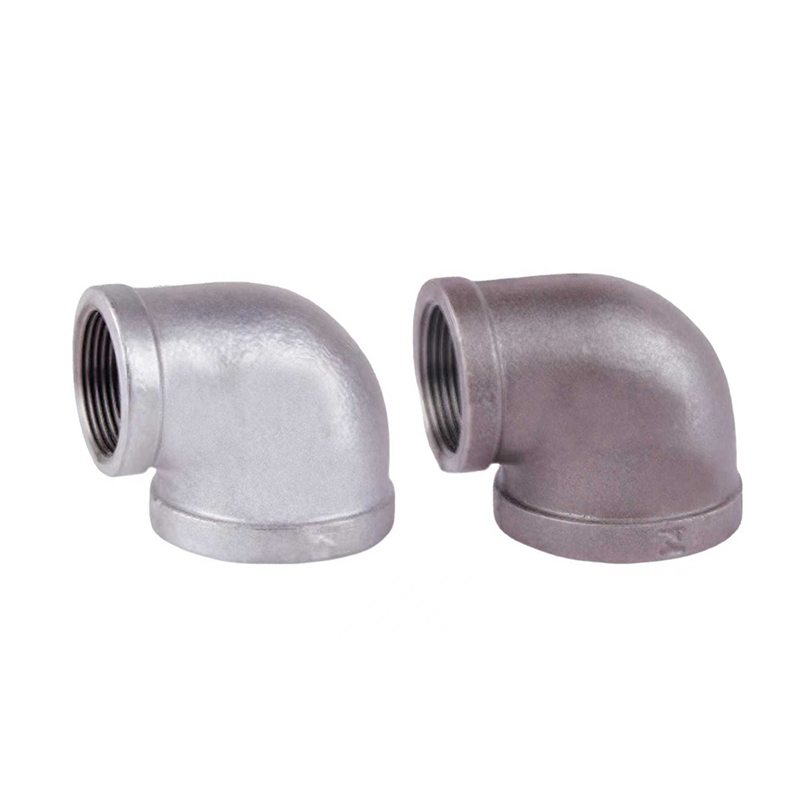

· Elbows

· Tees

· Couplings

· Bushings

· Unions

· Crosses

· Nipples

· Caps

· Plugs

Strict Quality Control

Every fitting undergoes rigorous inspections for:

· Dimensional accuracy

· Mechanical strength

· Pressure resistance

· Thread precision

· Surface finish

Global Manufacturing Standards

HuLu products are designed to satisfy the requirements of international markets, providing reliable performance across commercial, industrial, and infrastructure applications.

Conclusion

Both malleable iron and ductile iron fittings play vital roles in modern piping systems, but they are engineered for different performance requirements. Ductile iron excels in structural strength, impact resistance, and high-pressure applications, making it the preferred choice for heavy-duty infrastructure. Malleable iron, meanwhile, offers excellent toughness, easy machinability, and cost efficiency for threaded piping systems in residential, commercial, and light industrial environments.

Partnering with an experienced malleable iron pipe fittings manufacturer such as HuLu ensures access to high-quality products that balance durability, safety, and long-term value. By understanding the differences between these two materials, buyers can confidently select the right fittings for their specific project needs while optimizing both performance and cost.
